 | 电压及频率继电器可以高-低设置，内置MCU，可以同时进行电压和频率控制。 |
Product Details

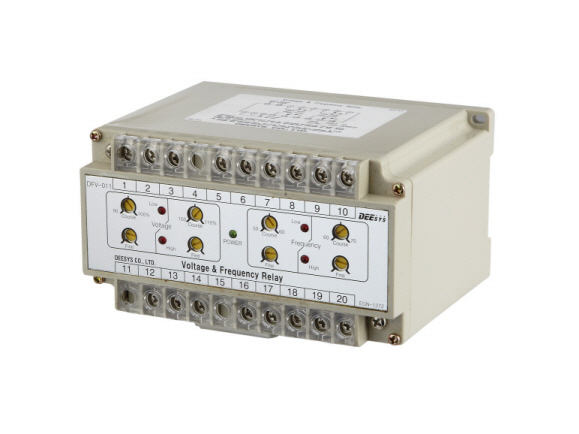

Part Name | 3-Phase Voltage and Frequency Relay | ||||||
Type | DFV-011 | ||||||
Style | 노출형(DIN Rail 사용기능) | ||||||
Connection | 외부VT 또는 Direct 사용 | ||||||
Input | VT : AC440V, Burden : 0.3VA, Frequency : 60㎐ | ||||||
Aux. Power | DC24V, 10W | ||||||
Voltage set range | Low : 90~100%(396~440V), High : 100~110%(440~484V) | ||||||
Frequency set | Low : 50~60㎐, High : 60~70㎐ | ||||||
Operating time | 200ms approx | ||||||
Reset | AC110V 10A 0.5sec(cosØ=1.0), Auto Reset | ||||||
Temperature | Operating temperature -10 ~ 55℃ RH < 95% | ||||||
| Storage temperature -20 ~ + 70℃ | |||||||
Vibration | Vibration frequency:16.7㎐ Double amplitude:0.4㎜ Direction:horizontal, vertical, transverse | ||||||
Shock | Shock acceleration:50G Shock application direction:horizontal, vertical, transverse | ||||||
| Shock times:3 times | |||||||
Weight | 1.0㎏ | ||||||
