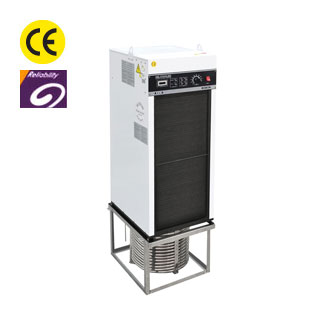

切削液机油冷却器

采用3相冷却机, 效率性高。
自动调节温度系统。
按订单生产[380V, 440V]

型号		KOD-55KC	KOD-105KC	KOD-205KC	KOD-305KC
制冷能力(Kcal/h)		1,500	2,400	5,100	8,000
电源	主电路(V)	AC 3P 220V 50~60Hz ※ 高电压另外订购 (380V, 440V)
	辅助电路(V)	AC 1P 220V 50~60Hz
	容量(kVA)	1.7	2.3	4.7	8.7
冷却机(Kw)		0.5	0.75	1.5	2.2
风扇电机(W)		100	100	100X2EA	100X2EA
循环马达	容量(Kw)	60
使用条件	室温(℃)	5~45
	油温(℃)	5~50
	使用油类	润滑油,油压起动油
	制冷剂	R-22 / R-407C
外形尺寸(mm)		3604701,060	3604701,060	4905501,400	4907201,500
重量(kg)		48	68	92	116

■ 为不断改良产品,我司将随时修改产品规格及相关说明书.
■ 可按订单要求生产.

①	Braking ability	3	0.3 Kw
		5	0.5 Kw
		10	0.75 Kw
		20	1.5 Kw
		30	2.2 Kw
		50	3.75 Kw
②	Sign	5	Type change
③	Temperature regulation	Nothing	Room-steep type
③	Temperature regulation	K	Temperature fixed type
④	Species	Nothing	Basic type bell-cooling machine
		T	Ubber type
		C	Cutting fluid

强制冷却方式1.
采用3-sang冷却机,效率High sex.
2.系统自动调节温度
易于调节温度.
3.机油冷却配制专用泵机内部
实现Low噪音.
4.多样化型号
选择面广泛.
5.精巧Use of 设计
便于安装和.

1. Large size / small size automatic control kneading machine bed
2. Industrial oil pressure machine
3. Applicable Uses Various kinds of use of hydraulic oil system (Plastic machine, discharge processing machine, oil pressure oak bed, etc.)
4. Stool and automation equipment.

Oil cooler, cooling system, hydraulic oil, lubricating oil, etc. Indoor temperature,
change of temperature, control of temperature,

1. Limitations on freezing temperature and oil temperature using this product.
(* Refer to the standard usage range under the reference.)
2. Standard temperature range Lower temperature deviation - - 10 ℃ ~ + 10 ℃
※ . ) ℃ 20 ℃ at room temperature ℃ 10 ℃ 30 ℃范围之间.
3. Applicable electrical capacity of the ceiling of the main power supply. (Reference description)

- 1 kcal / h: 1 kg during a short period of time Water conversion
1 ° C Time demand heat quantity unit
- BTU / h: 1 unit in a short time 1Lb water conversion 1 ℉
Time demand heat quantity unit

1Kcal	: 3.986 BTU
1BUT	: 0.252 Kcal
1RT	: 3320 Kcal / h
1Kw	: 860 Kcal / h
1Hp	: 632 Kcal / h

(Kcal / h)
- Cp = oil specific heat Kcal / Kg ° C (ISO VG # 32 → 0.47)
- r = specific weight Kg / ㎣ (876)
- Q = CP × r × Vs × Δt - Q = Vs = amount of oil (㎣ / h)
- Δt = temperature ° C. (Inlet-Outlet)

- Use temperature range
- Instant , starting at 30 ℃ ~ 35 ℃.
◎ Cooling capacity maximum point.
